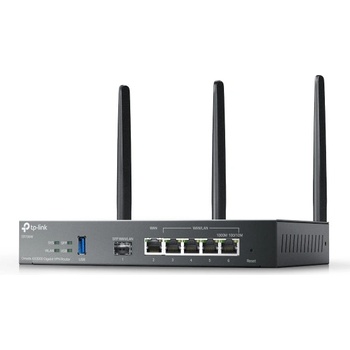

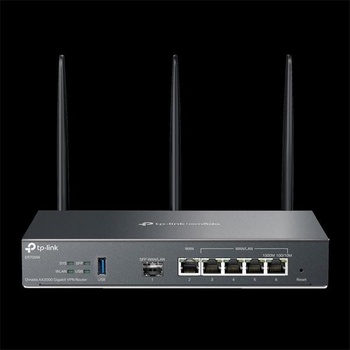

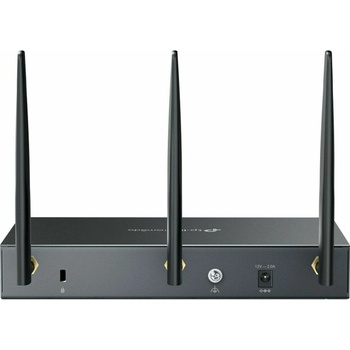

TP-LINK Omada AX3000

ER706W

Gigabitový VPN smerovač Omada AX3000

• Dvoupásmová Wi-Fi AX3000: Podporuje rýchlosť pripojenia 2 402 Mbit/s v pásme 5 GHz a 574 Mbit/s v pásme 2,4 GHz
• 6 gigabitových ethernetových portov: 1 gigabitový port SFP a 5 gigabitových portov RJ45 poskytujú vysokorýchlostné káblové pripojenie.
• Technológia Omada Mesh: Bezproblémové pripojenie k zariadeniam EAP, ktorá podporuje technológiu Mesh, ideálne pre pokrytie miest s veľkou rozlohou.**
• Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchou správu.
• Zvýšené pokrytie: Trojice externých antén rozširuje a sustreďuje signály Wi-Fi siete k zariadeniam.
• VPN s vysokým zabezpečením: Podporuje niekoľko VPN protokolov vrátane IPSec, SSL, Wireguard, OpenVPN, PPTP a L2TP VPN, čo pomáha pružne flexibilnejším navazovať vzdialené pripojenie.?
• Bohaté funkcie zabezpečenia: Pokročilé zásady firewallu, ochrana proti útokom DoS, filtrovanie adresy IP/MAC/URL a ďalšie bezpečnostné funkcie na ochranu vašej siete a dát.

SECURITY

Access Control Source/Destination IP Based Access Control

Filtering • Web Group Filtering†

• URL Filtering
• Web Security†

ARP Inspection • Sending GARP Packets

• ARP Scanning†
• IP-MAC Binding

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

Interface • 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB3.0 (supports USB LTE dongle and USB Storage)

Button Reset Button

Power Supply 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)

Flash 128 MB NAND

DRAM 512 MB DDR4

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)

Antenna • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas

Mounting Desktop/Wall-mounting

Max Power Consumption • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)

PERFORMANCE

GRE • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps

WireGuard VPN 393.5Mbps

Concurrent Session 150,000

New Sessions /Second 5,100

NAT (Static IP) 937.2 Mbps / 936.1Mbps

NAT(DHCP) 945.8 Mbps / 940.6Mbps

NAT(PPPoE) 942.9 Mbps / 942.9Mbps

NAT (L2TP) 837.4 Mbps / 881.5Mbps

NAT (PPTP) 803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 646.9Mbps

• ESP-SHA256-AES256: 642.8Mbps
• ESP-SHA384-AES256: 648.9Mbps
• ESP-SHA512-AES256: 658.4 Mbps

OpenVPN 129.3Mbps

L2TP VPN Throughput • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps

PPTP VPN Throughput • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps

SSL VPN Throughput 126.7Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps

WIRELESS FEATURES

Advanced Functions • Seamless Roaming

• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Guest Network Support

BASIC FUNCTIONS

WAN Connection Type • Static IP

• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone Modify WAN Address

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing

• Policy Routing
• RIP†
• OSPF†

Bandwidth Control IP-Based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection

NAT • One-to-One NAT

• Multi-Net NAT
• Port Forwarding
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit IP-Based Session Limit

VPN

SSL VPN 50 Tunnels

IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)?
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)?
• 50 Tunnels
• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (5)?
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP

MANAGEMENT

Omada App Yes.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS

Customization)

Maintenance • Web Management Interface

• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents • ER706W

• Power Adapter
• Quick Installation Guide

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
