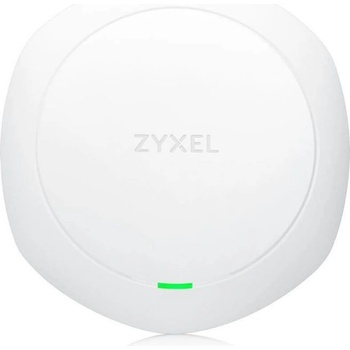

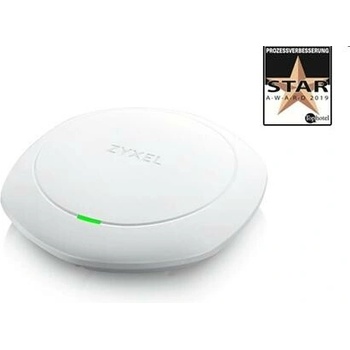

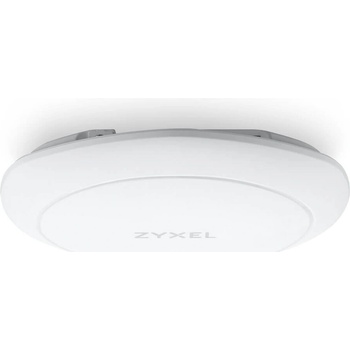

ZyXEL WAC6303D-S-EU0101F

WAC6303D-S 802.11ac Wave2 3x3 Smart Antenna Access Point with BLE Beacon (no PSU)

Špičkové bezdrôtové služby a skutočná flexibilita do miest s vysokou prevádzkou

Prístupový bod WAC6303D-S je vybavený inteligentnou anténou, ktorá klientom aj v miestach s vysokou prevádzkou prináša špičkové bezdrôtové služby.

WAC6303D-S navyše podporuje riešenie NebulaFlexTM Pro, ktoré zahŕňa trojročnú licenciu Professional Pack a umožňuje tri prevádzkové režimy (samostatný, riadený kontrolérom a riadený pomocou cloudu Nebula).

Technické paramtetre 802.11n/ac premium features:

• 2.4GHz: 2x2 MIMO s dvoma spatial stream (SU-MIMO)
• 5GHz: 3x3 MIMO s tromi spatial stream (SU-, or MU-MIMO)
• 802.11ac beamforming (transmit beamforming)
• Maximal ratio combining (MRC)
• Low End Sensitivity Improvements (LESI)
• Time Domain Channel Smoothing
• 20-, 40- a 80-MHz kanály
• PHY dáta rates 300 Mbps (11n) + 1300 Mbps (11ac)
• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
• Cyclic Delay diversity (CSD) support
• Maximum Likelihood Demodulation (MLD) support
• Low Density Parity Check (LDPC) support

Typický prenos output power (dBm):

• US (FCC) 2.4 GHz: 25 dBm
• US (FCC) 5 G GHz: 28 dBm
• EÚ (ETSI) 2.4 GHz: 20 dBm
• EÚ (ETSI) 5 G GHz: 26 dBm

Antenna gain:

• 2.4 GHz: 3 dBi; 2x2 MIMO
• 5 GHz: 4 dBi 3x3 MIMO

Support data rate:

• 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns)
• 802.11ac:up to 1300 Mbps v MCS9 (80MHz; 3 Spatial Streams; GI=400ns)

• Receive sensitivity: Min. Rx sensitivity up to -103 dBm
• Number of 10/100/1000M LAN: 2 x switch ports
• Console port: 4-Pin serial
• Input power requirements: Direct DC power alebo Power over Ethernet (PoE)*2

PoE:

• 802.3at (full mode)
• 802.3af (Restrict 2.4G & 5G rádio na jeden prenosný stream only.)

PoE power draw:16.2W (802.3at PoE)

Item:

• Dimensions (WxDxH)(mm/in.): 211 x 223 x 39 / 8.31 x 8.78 x 1.54
• Weight (kg/lb.): 800/1.76

• Included accessories: Wall/ceiling mount plate
• Plenum rating: Yes
• Kensington lock support: Yes

Power supply:

• Input: AC 100-240V, 50~60Hz
• Output: DC +12V 2A (Sold separately)
